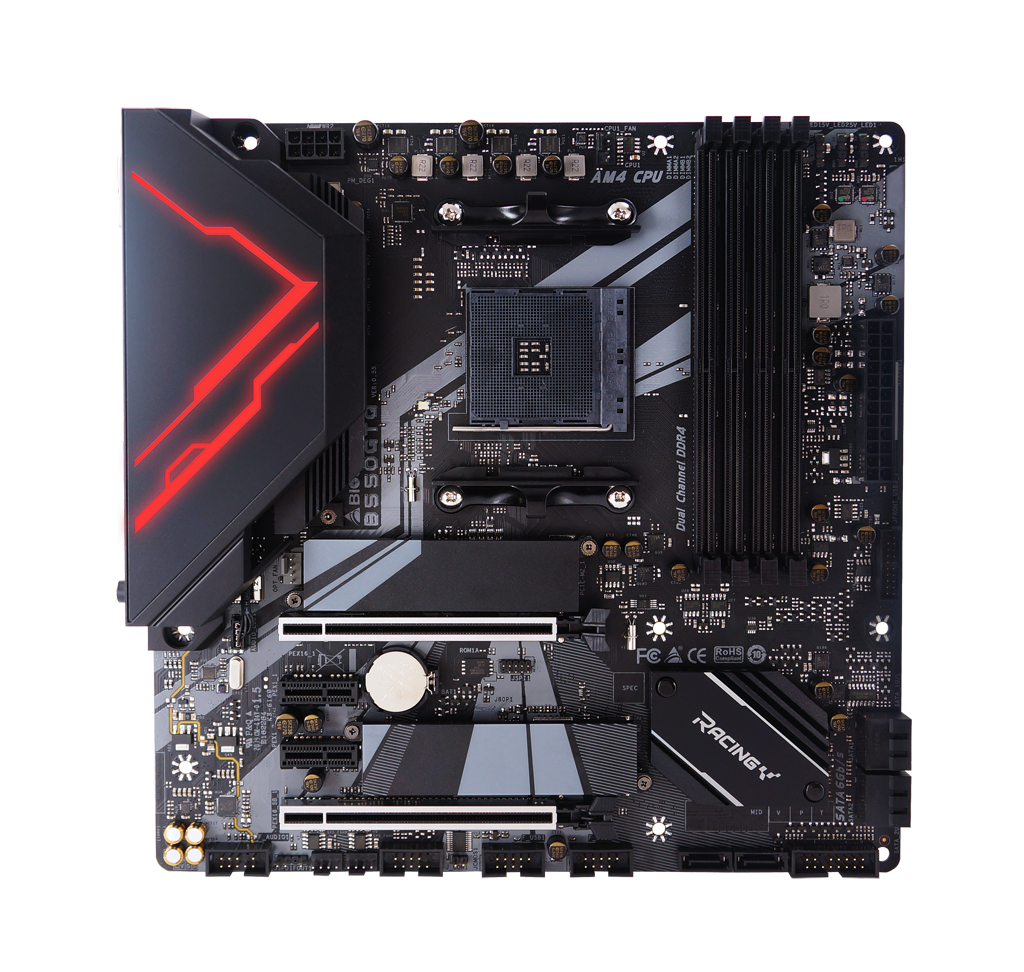

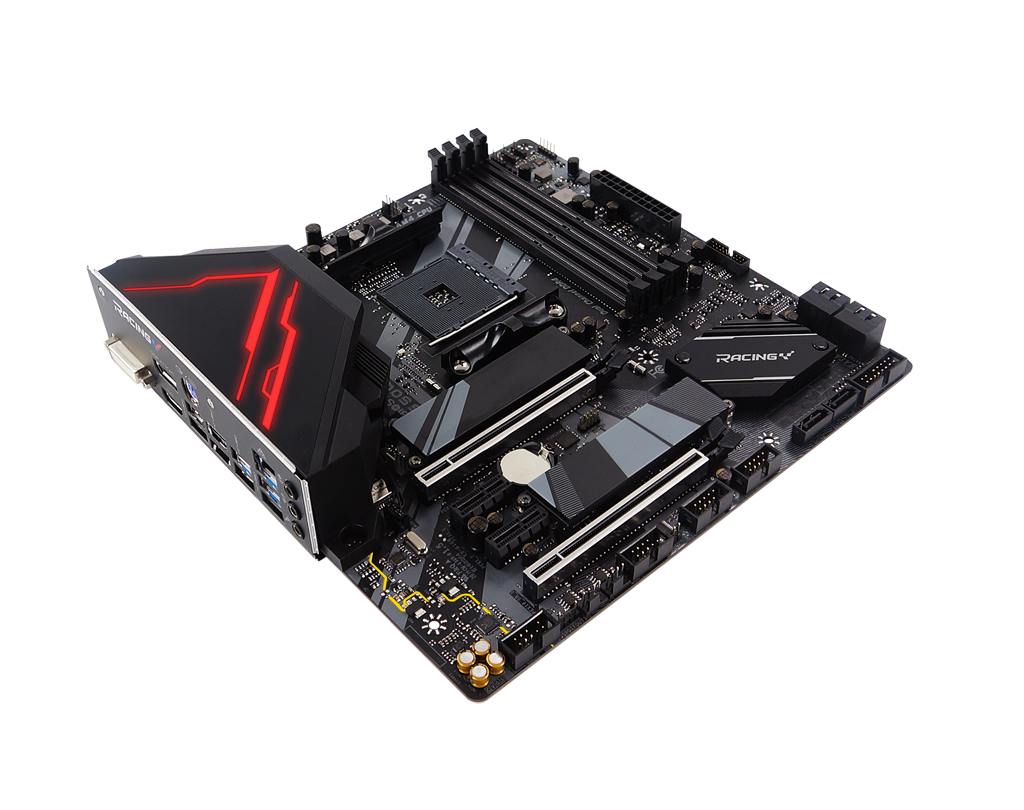

BRAND : BIOSTAR
Model : B550 GTQ
CPU SUPPORT :
1) Socket AM4 support AMD Supports 3rd Gen AMD Ryzen™ (Matisse / Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors and Ryzen™ 4th Gen (Vermeer) processors.
2) Support for future AMD Ryzen processors with BIOS update.
MEMORY:
3rd Gen AMD Ryzen Processors (Matisse CPUs)
Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
INTEGRATED VIDEO SUPPORT:
By CPU model : Supports DX12 & Supports HDCP
STORAGE :
6 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
2 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket:
The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.
* When PCIe-M2_2 slot is occupied by PCIe mode, the SATA3/ SATA4 connector will be disabled.
* When PCIe-M2_2 slot is occupied by SATA mode, the SATA3 connector will be disabled.
LAN SUPPORTS:
Realtek RTL 8118AS
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Support Super LAN Surge Protection
AUDIO CODEC : ALC1150
7.1 Channels, High Definition Audio, Hi-Fi (Front).
USB :
1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O)
1 x USB 3.2 (Gen2) Type-A port (1 on rear I/O)
6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT :
1x PCIe 4.0/ 3.0 x16 Slot (PEX16_1):
Supports x 16 lanes with AMD Ryzen™ 3rd Gen processors. (Matisse only)
Supports x 8 lanes AMD Ryzen™ with Radeon Vega Graphics processors. (depended on CPU)
1 x PCIe 3.0 x 16 Slot (PEX16_SB_1): Supports x 4 lanes
2 x PCIe 3.0 x 1 Slot
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for AMD Ryzen™ 3rd Gen Matisse.
* When using PEX1_1 slot, PEX16_SB_1 slot will be adjusted to x 1 lanes.

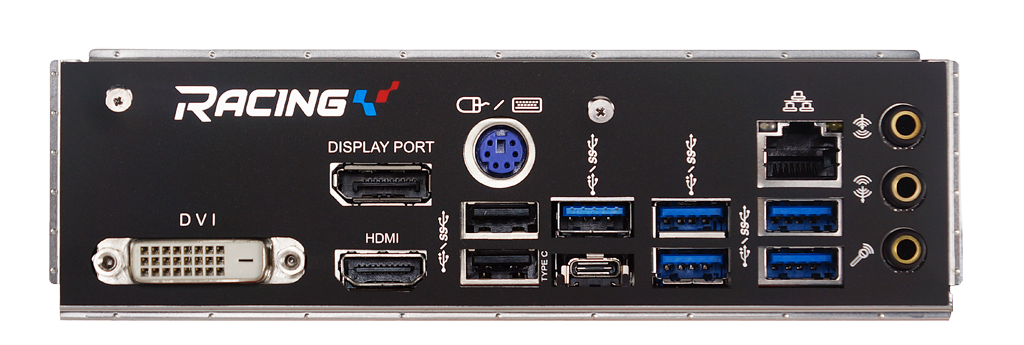

REAR I/O :
1 x PS/2 Keyboard / Mouse
1 x DVI-D Port
1 x DP Port
1 x HDMI Port
1 x LAN port
1 x USB 3.2 (Gen2) Type-C Port
1 x USB 3.2 (Gen2) Type-A Port
4 x USB 3.2 (Gen1) Port
2 x USB 2.0 Port
3 x Audio Jack
INTERNAL I/O :
6 x SATA III (6.0Gb/s) Connector
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
2 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x S/PDIF out Connector
1 x COM Port Header
2 x LED Header (5V)
1 x LED Header (12V)
H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION : Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
OS SUPPORT : Supports Windows 10(64bit)
ACCESSORIES :
4 x SATA Cable
1 x DVD Driver
1 x Quick Guide
FEATURES :
VIVID LED DJ
M.2 Cooling Protection
A.I FAN
Iron Slot Protection
PCIe M.2 4.0
LED ROCK ZONE
Super LAN Surge Protection
