BRAND : BIOSTAR
Model : Z490 GTN
CPU SUPPORT :
1) Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
2) Supports Intel Turbo Boost Max 3.0 Technology.
MEMORY:
Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933
Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module
Support for Extreme Memory Profile (XMP) memory modules
INTEGRATED VIDEO SUPPORT:
By CPU model : Supports DX12 & Supports HDCP
STORAGE:
Total supports 1 x M.2 slots and 4x SATA III (6Gb/s )ports
4 x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
1 x M2_32G_1 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
LAN SUPPORTS:
Intel i219V; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability.
Supports Super LAN Surge Protection.
AUDIO CODEC:
ALC892 - 7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB SUPPORTS:
6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header)
4 x USB 2.0 ports (2 on rear I/Os and 2 via internal headers)
EXPANSION SLOT: 1 x PCIe 3.0 x 16 Slot

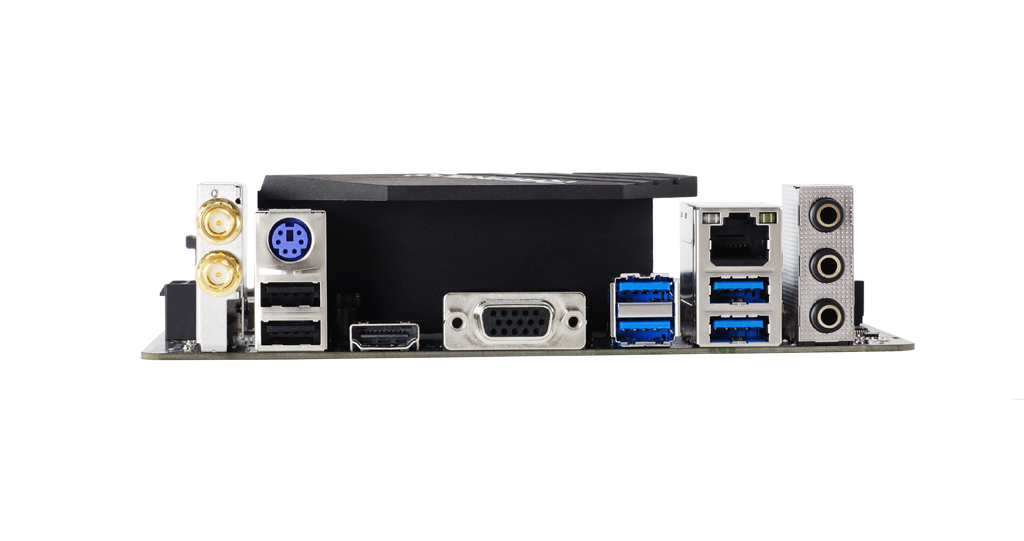

REAR I/O :
2 x WiFi Antenna Ports (Optional)
1 x PS/2 Keyboard/ Mouse
1 x HDMI Port
1 x VGA Port
1 x LAN Port
2 x USB 2.0 Ports
4 x USB 3.2(Gen1) Ports
3 x Audio Jack
INTERNAL I/O :
4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type WiFi & Bluetooth module and Intel CNVi
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x LED Header (5V)
1 x LED Header (12V)
* M.2 E Key wireless card is not provided.
H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION : Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
ACCESSORIES :
4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi accessories
FEATURES :
BIO-Relife
BIO-Flasher
BIOSTAR Flash
BIOS EZ Mode /Advanced Mode
BullGuard
RACING GT Utility
Intel Optane technology
LED Rock Zone (12V*1 / 5V*2)
