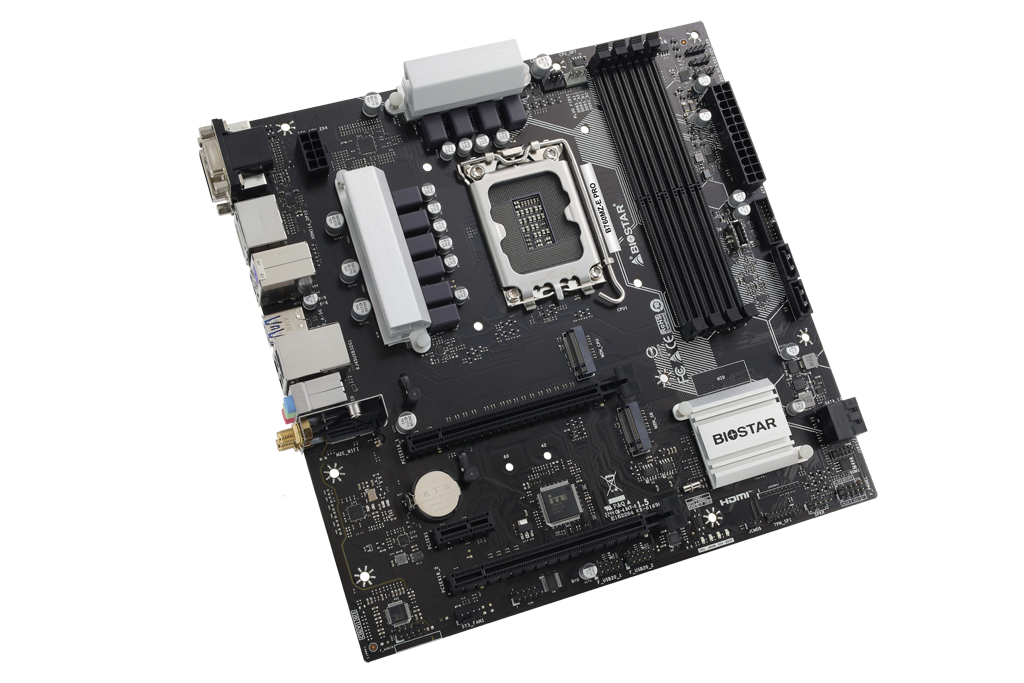

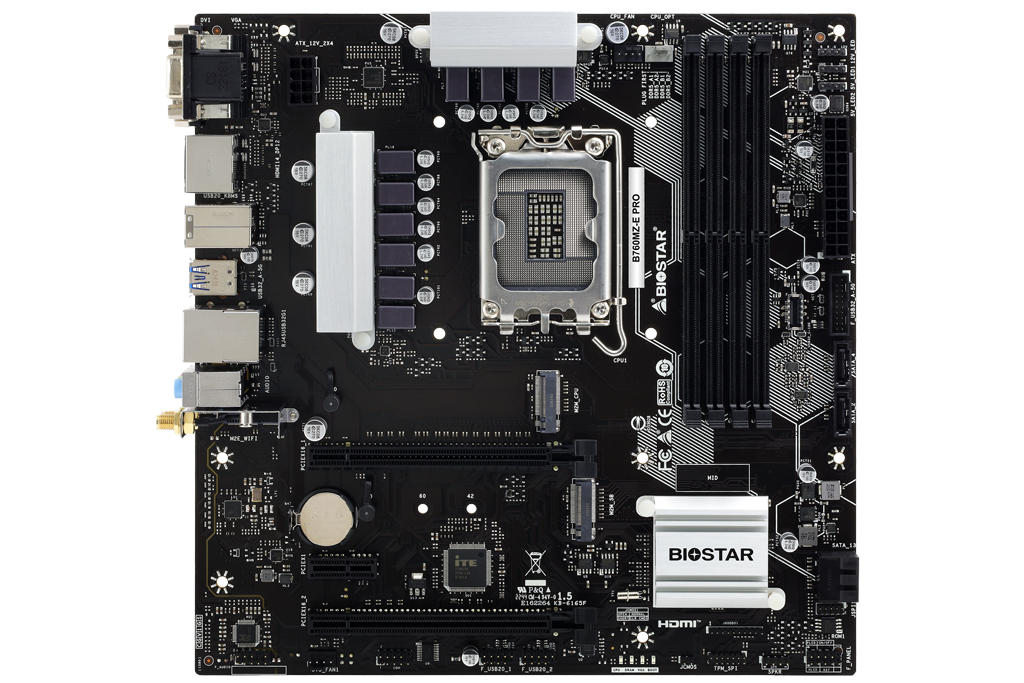

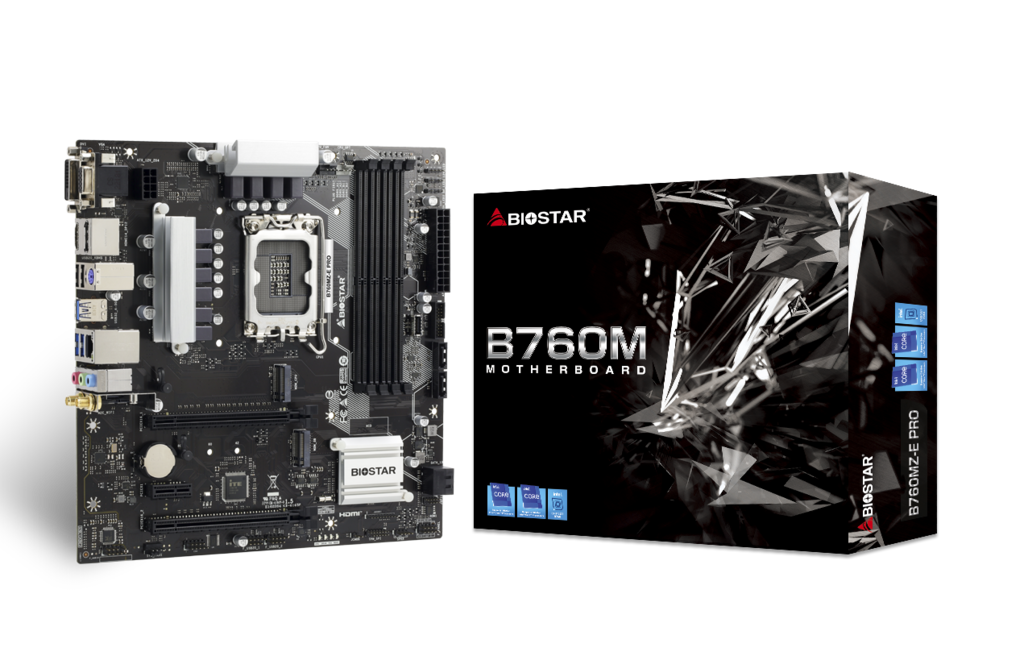

Intel Biostar B760MZE-E Pro Motherboard | 4 DDR5 Up To 192 GB | Included PCIe 4.0, PCIe M.2 4.0, USB 3.2 Gen2 Type C | LED Lighting, A.I Fan, HDMI

  • Model: Intel B760MZE-E Pro

  • Brand: Alseye

  • Category: Computer Case

AED680.00
  • 1 YEAR WARRANTY
  • Delivery within 48hour
Spin UpSpin Down

Shop On:

Share At:



Product Description
  • Dual DDR5: For better graphical enhancement, users can use this slot. Bandwidth is increased by 50% compared to DDR4.
  • Intel B760 Single chip: Support for 12th/13th generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package.
  • PCIe 4.0: Widely used standard for input/output connectivity in computers. Operates at a signaling rate of 16(GT/s) per lane, effectively doubling the interconnect performance bandwidth compared to the previous version, PCIe 3.0.
  • PCIe M.2 4.0: It is 5 times faster than SATA III 6Gbps. Provides highest bandwidth & lower latency.
  • USB 3.2 GEN2 Type C Ports: Allow users to transfer files faster.
  • A.I Fan: Helps in providing efficient temperature management while the PC is working at heavy loads. Supports both PWM and DC voltage fans for better cooling.
  • LED Rock Zone: LED zone for aesthetic lighting effects, enhancing visual appeal and personalization in the system's design. Offers more colorful lighting options. Included RGB 12V LED header and ARGB 5V LED header.
  • WiFi 6 & 6 E Module (No WiFi card included): Enable integration with compatible WiFi 6/6E modules for high-speed, low-latency wireless connectivity, offering advanced performance and broader bandwidth for modern networking needs.
  • Supports 2.5G (LAN): Enable 2.5 Gigabit LAN (Local Area Network) connectivity, providing faster data transfer speeds via Ethernet. This feature offers enhanced networking performance for quicker file transfers, smoother multimedia streaming, and reduced latency in compatible systems.

Specifications

Chipset

Intel B760

CPU Support

Support for 12th / 13th /14th Generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

Memory

Supports Dual Channel DDR5 - 6000+(OC) / 6000(OC) /5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800

4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory

Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module

Support Intel® Extreme Memory Profile (XMP) memory modules

Integrated Video

Supports DX12

Supports HDCP

STORAGE Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports

Intel 12th/13th/14th Processors

1 x M.2 (M Key) Socket (M2M_CPU):

Supports M.2 Type 2280 SSD module

Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD

Intel B760 Chipset

1 x M.2 (M Key) Socket (M2M_SB):

Supports M.2 Type 2242/2260/2280 SSD module

Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD

4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

LAN

Realtek RTL8125B

10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

Audio CODEC

ALC897

7.1 Channels, High Definition Audio, Hi-Fi(Front)

USB 1 x USB 3.2 (Gen2) Type-C port (1 via internal header)

5 x USB 3.2 (Gen1) port (3 on rear I/Os and 2 via internal header)

6 x USB 2.0 port (2 on rear I/Os and 4 via internal header)

Expansion Slot

INTEL 12th/13th/14th Processors

1 x PCIe 4.0 x16 Slot (x16 mode)

INTEL B760 Chipset

1 x PCIe 3.0 x16 Slot (x4 mode)

1 x PCIe 3.0 x1 Slot

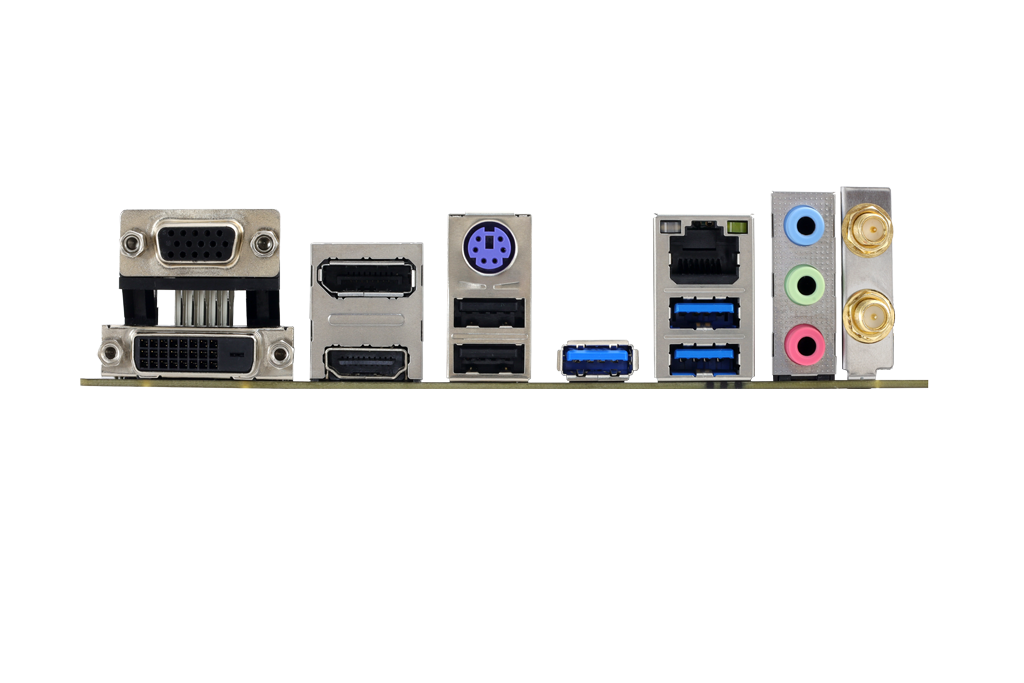

Rear I/O

2 x WIFI Antenna Port

1 x PS/2 Keyboard/ Mouse Port

1 x HDMI

1 x DP

1 x VGA

1 x DVI Port

3 x USB 3.2 (Gen1) Port

2 x USB 2.0 port

1 x LAN port

3 x Audio Jack

Internal I/O

4 x SATA III Connector (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x CPU water cooling connector (CPU_OPT)

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

2 x LED Header (5V)

1 x LED Header (12V)

* M.2 (E key) Wi-Fi card is not provided

H/W Monitoring

CPU / System Temperature Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

Dimension

Micro ATX Form Factor Dimension: 24.4 cm x 24.4cm ( W x L )

OS Support

Supports Windows Windows 10(64bit) / Windows 11(64bit)

Bundle Software

BullGuard

Accessories

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

1 x M.2 Anchor

1 x WiFi antenna accessories

FEATURES VIVID LED DJ

BIO-FLASHER

A.I FAN

LED ROCK ZONE
