Brand : BIOSTAR
Model : TB360 - BTC D PLUS
CHIPSET : INTEL B360
CPU SUPPORT :
8th and 9th Gen Intel Core i7 LGA 1151 Processor
8th and 9th Gen Intel Core i5 LGA 1151 Processor
8th and 9th Gen Intel Core i3 LGA 1151 Processor
8th and 9th Gen Intel Pentium LGA 1151 Processor
8th and 9th Gen Intel Celeron LGA 1151 Processor
MEMORY :
1 x DDR4 SO-DIMM Memory Slot (Max Supports up to SO-DIMM DDR4-2133/2400/2666
up to 16GB Memory)
INTEGRATED VIDEO : By CPU model , Supports DX12 AND Supports HDCP
STORAGE : 1 x SATA III Connector (6Gb/s) , 1 x M.2 (M Key) 16Gb/s Connector : Support PCIe & SATA SSD
LAN : Realtek RTL8111H - 10/100/1000Mb/s Controller
USB : 6 x USB 2.0 Port (4 on rear I/OS and 2 via internal headers)
EXPANSION SLOT : 1 x PCI-E 3.0 x16 Slot(x16) and 7 x PCI-E 2.0 x16 Slot(x1)

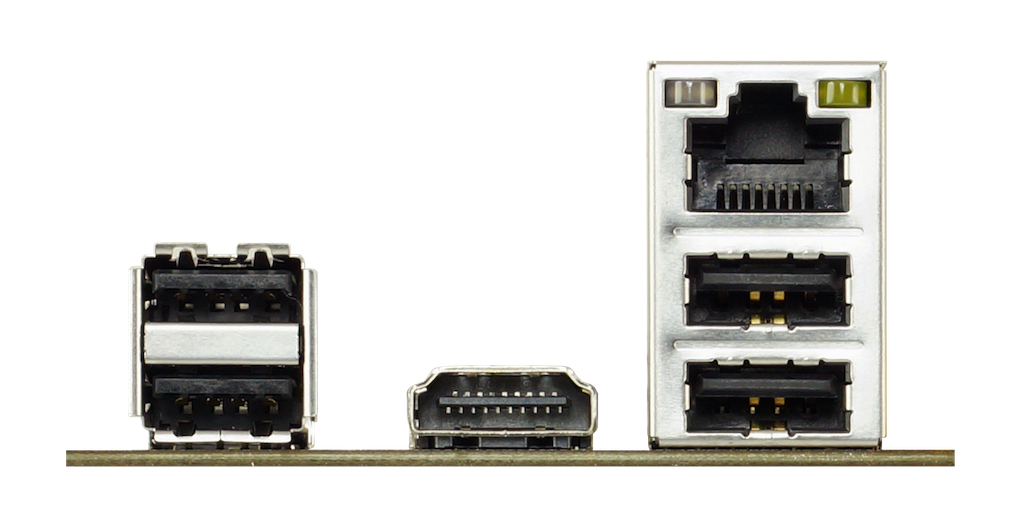

REAR I/O : 4 x USB 2.0 Ports , 1 x HDMI Connector , 1 x LAN Port
INTERNAL I/O :
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x SATA III Connector (6Gb/s)
1 x SATA Power Connector (for rear USB power enhancement)
1 x Front Panel Header
1 x CPU Fan Connector
7 x System Fan Connectors
1 x Clear CMOS Header
H/W MONITORING :
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION : Special Form Factor Dimension: 48.5cm x 23.5cm ( W x L )
OS SUPPORT :
Supports Windows 10(x64)
BIOSTAR Reserves the right to add or Remove Support for any
OS with or without notice.
BUNDLE SOFTWARE : BULLGUARD
ACCESSORIES : 1 x SATA CABLE 90 and 1 x SATA Power Cable
FEATURES : BULLGUARD
