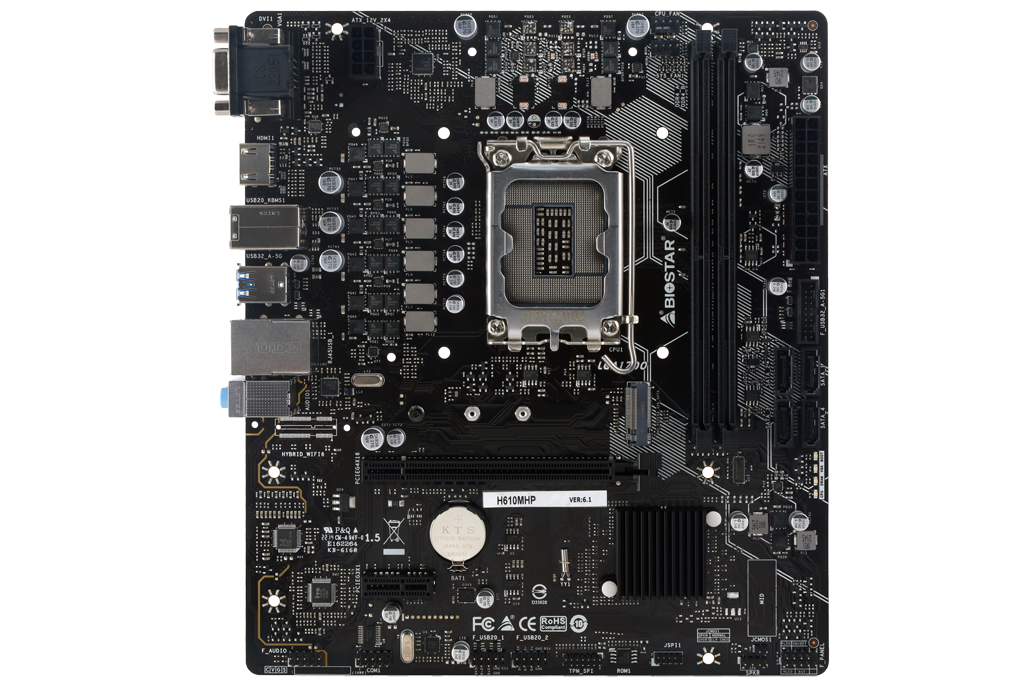

Intel Biostar H610mhp 6.1 Gaming Motherboard

shoe image
shoe image

Intel Biostar H610MHP 6.1 Motherboard | Support 12/13/14 Generation Intel Core Processor | Support 2-DIMM DDR4 Up To 64GB | PCIE 4.0 Slots, HDMI 4K2K, USB 3.2 Gen 1

  • Model: Biostar H610mhp 6.1

  • Brand: Biostar

  • Category: Gaming Motherboard

AED380.00
  • 1 YEAR WARRANTY
  • Delivery within 48hour
Spin UpSpin Down

Shop On:

Share At:



Product Description
  • HD Audio: The motherboard provides high-resolution audio with minimal loss of audio accuracy.
  • Intel H610 Single Chip: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors.
  • Video: With the help of the new HDMI 4k2k, DX12 & HDMI with HDCP provides high-definition videos with richer scenes.
  • SATA III 6Gbps: SATA III 6Gbps is 2 times faster than SATA II. It provides a higher bandwidth to retrieve and transfer HD media.
  • Dual DDR4: You can insert up to 32 GB DDR4 in two slots; each slot supports 8/16 GB to improve the graphical support of the system.
  • USB 3.2 GEN1 Type-A Ports: Allow users to transfer files faster.
  • PCIe 4.0: Widely used standard for input/output connectivity in computers. Operates at a signaling rate of 16(GT/s) per lane, effectively doubling the interconnect performance bandwidth compared to the previous version, PCIe 3.0.
  • PCIe M.2 3.0: It is 5 times faster than SATA III 6Gbps. Provides the highest bandwidth & lower latency.

Specifications

Chipset

Intel H610

CPU SUPPORT

Support for 12th/ 13th/ 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

MEMORY

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Support Intel Extreme Memory Profile (XMP) memory modules

INTEGRATED VIDEO

Supports DX12

Supports HDCP

STORAGE Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports

Intel H610 Chipset

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):

Supports M.2 Type 2242 /2260 /2280 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD

4 x SATA III Connector (6Gb/s)

LAN

Intel I219V

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

ALC897

7.1 Channels, High Definition Audio

USB 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)

8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT

INTEL 12th/13th/14th Processors

1 x PCIe 4.0 x16 Slot (x16 mode)

Intel H610 Chipset

1 x PCIe 3.0 x1 Slot

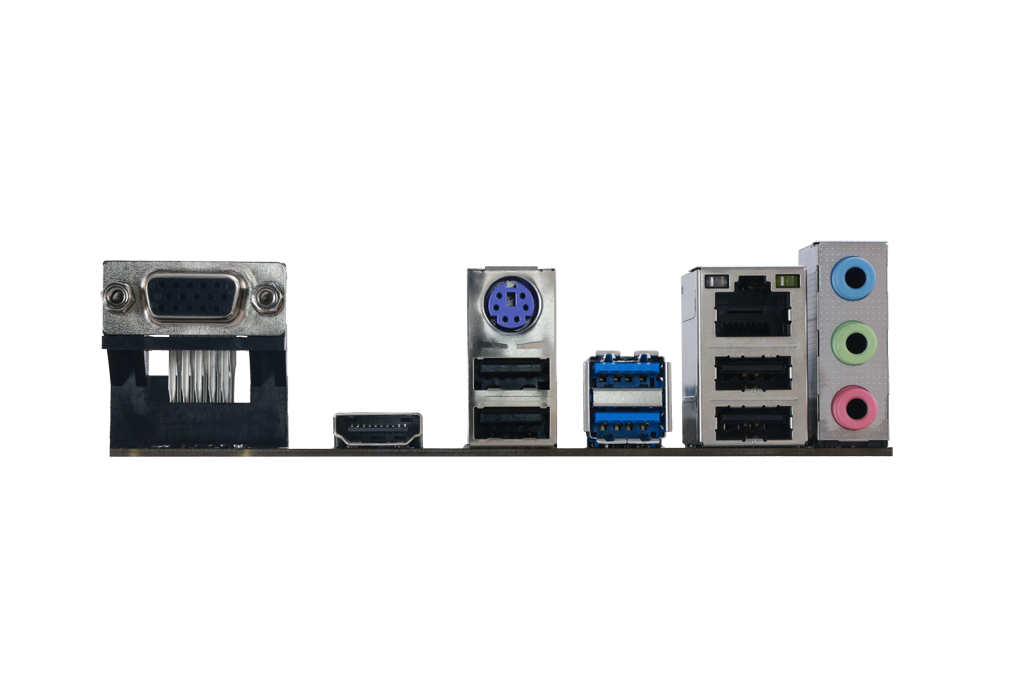

REAR I/O

1 x PS/2 Keyboard/Mouse Port

1 x HDMI

1 x VGA Port

2 x USB 3.2 (Gen1) ports

4 x USB 2.0 ports

1 x LAN port

3 x Audio Jack

INTERNAL I/O

4 x SATA III Connectors (6Gb/s)

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION

Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

OS SUPPORT

Supports Windows 10 (64bit) / 11(64bit)

BUNDLE SOFTWARE

BullGuard
