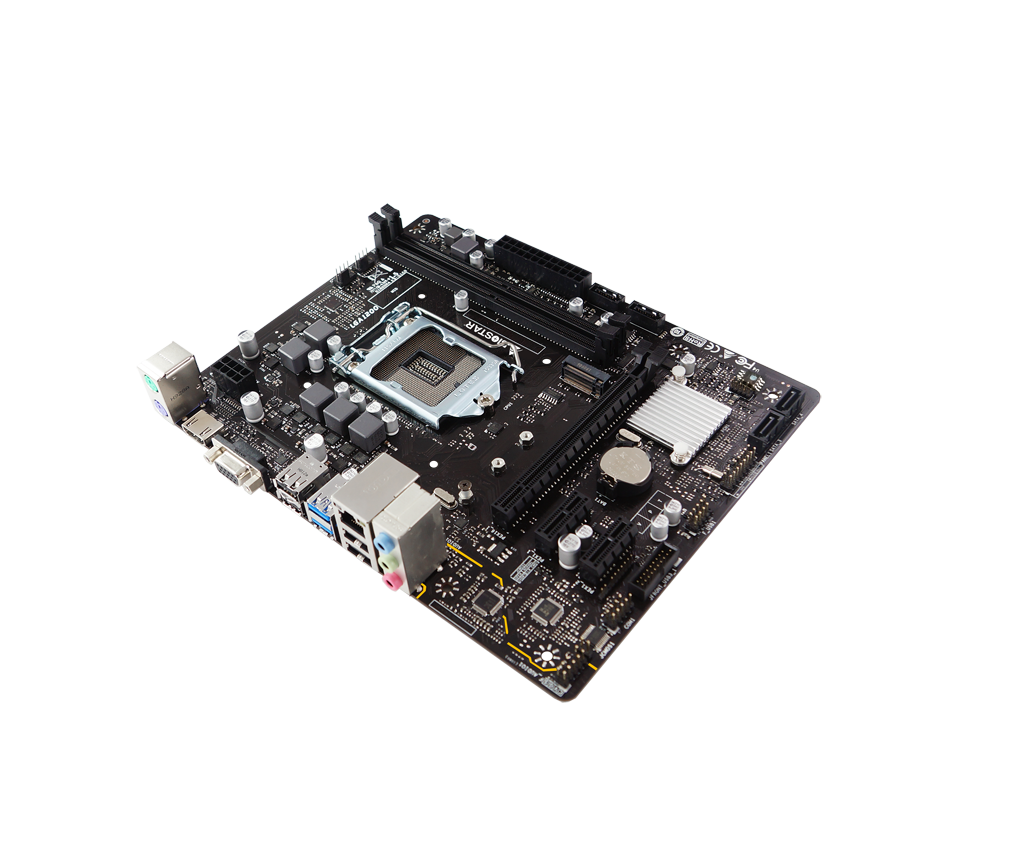

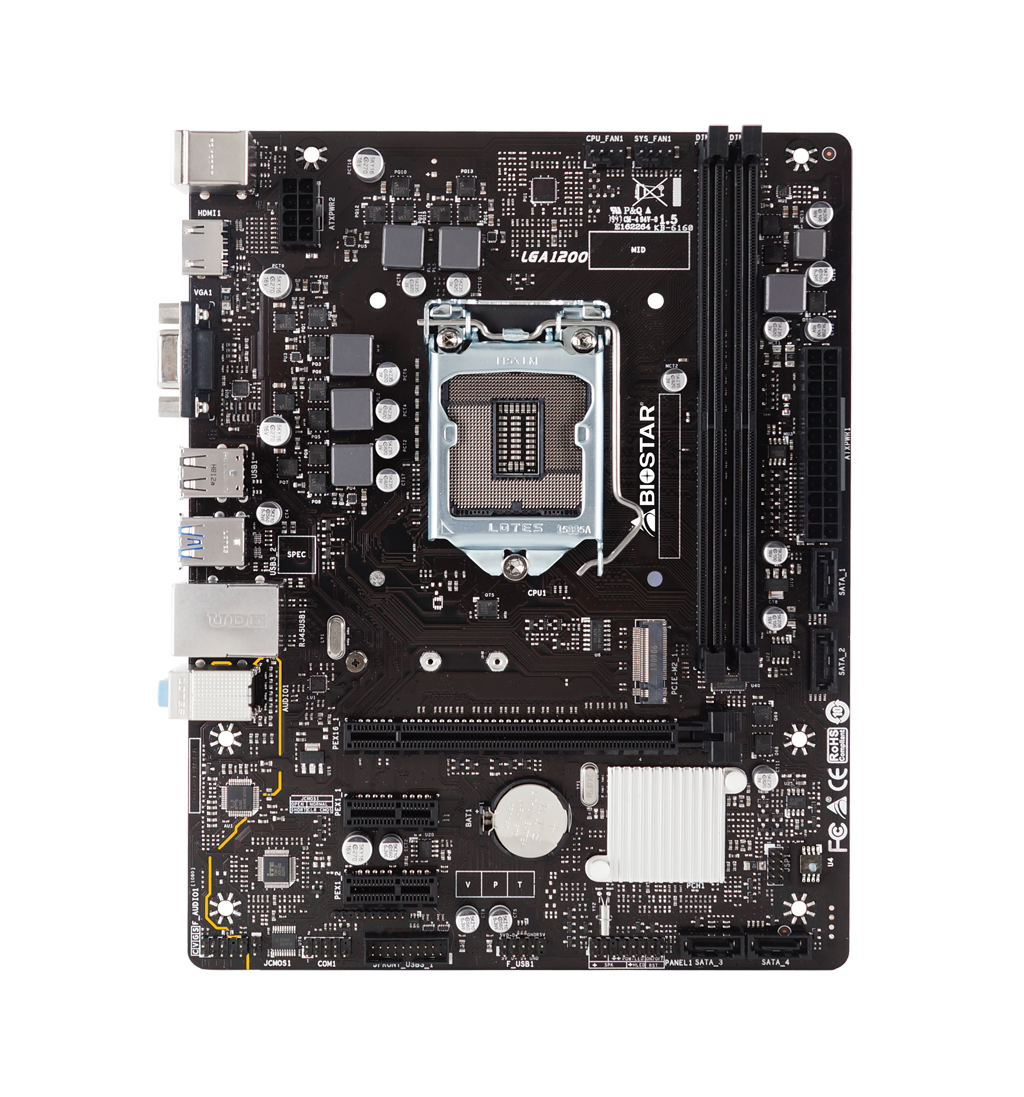

BRAND : BIOSTAR
Model : H410MH
CPU SUPPORT :
1) Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
2) Supports Intel Turbo Boost Max 3.0 Technology.
MEMORY:
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933
2 x DDR4 DIMM Memory Slots, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to Memory Support List for more information.
Core (i9/i7) support DDR4 up to 2933 MHz; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666 MHz.
INTEGRATED VIDEO SUPPORT:
By CPU model : Supports DX12 & Supports HDCP
STORAGE:
Total supports 1 x M.2 slots and 4 x SATA III(6Gb/s) ports
1 x PCIe-M2 socket , with M key, type 2242/2260/2280 storage devices support SATA & PCIE 3.0 x 2 mode
4 x SATA III (6Gb/s)
* When using SATA SSD module on M.2(PCIe-M2)slot, the SATA_1 connector will be disabled.
LAN SUPPORTS : RTL8111H - 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability.
AUDIO CODEC : ALC887
7.1 Channels, High Definition Audio.
USB SUPPORTS :
4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)

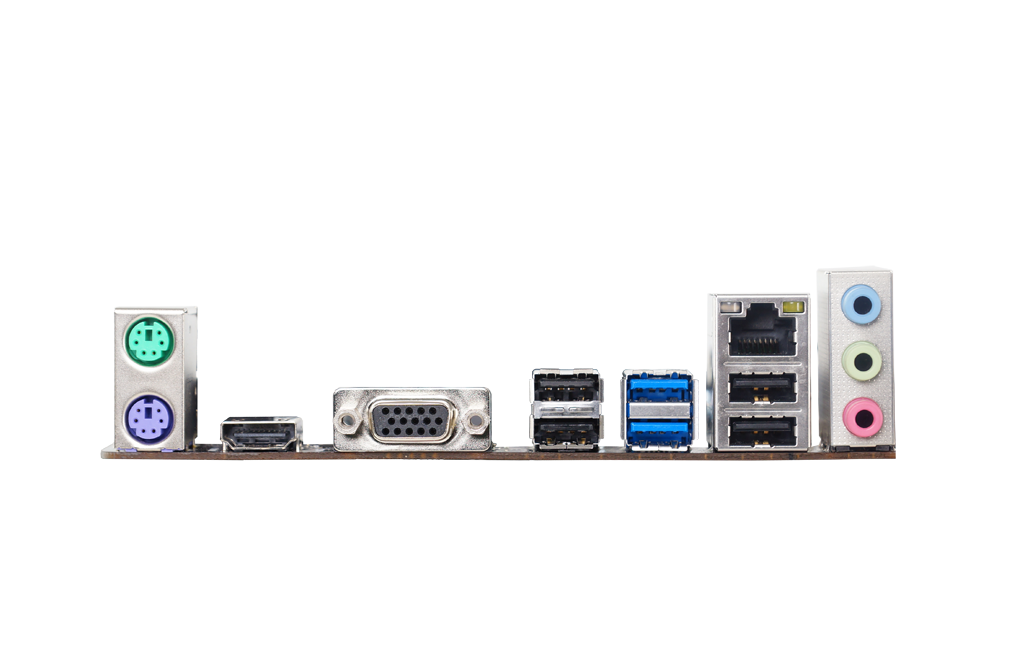

REAR I/O :
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O :
4 x SATA III Connectors (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION : Micro ATX Form Factor Dimension: 17.9cm x 22.6cm ( W x L )
OS SUPPORTS :
Supports Windows 10 (64bit)
ACCESSORIES :
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES :
Supports 100% Solid capacitor
