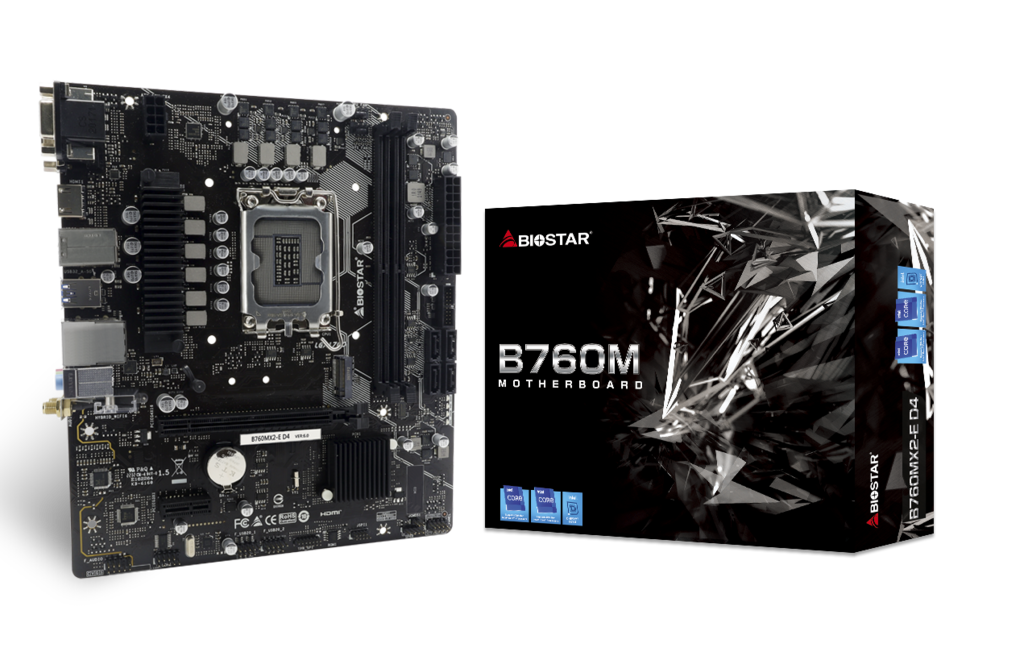

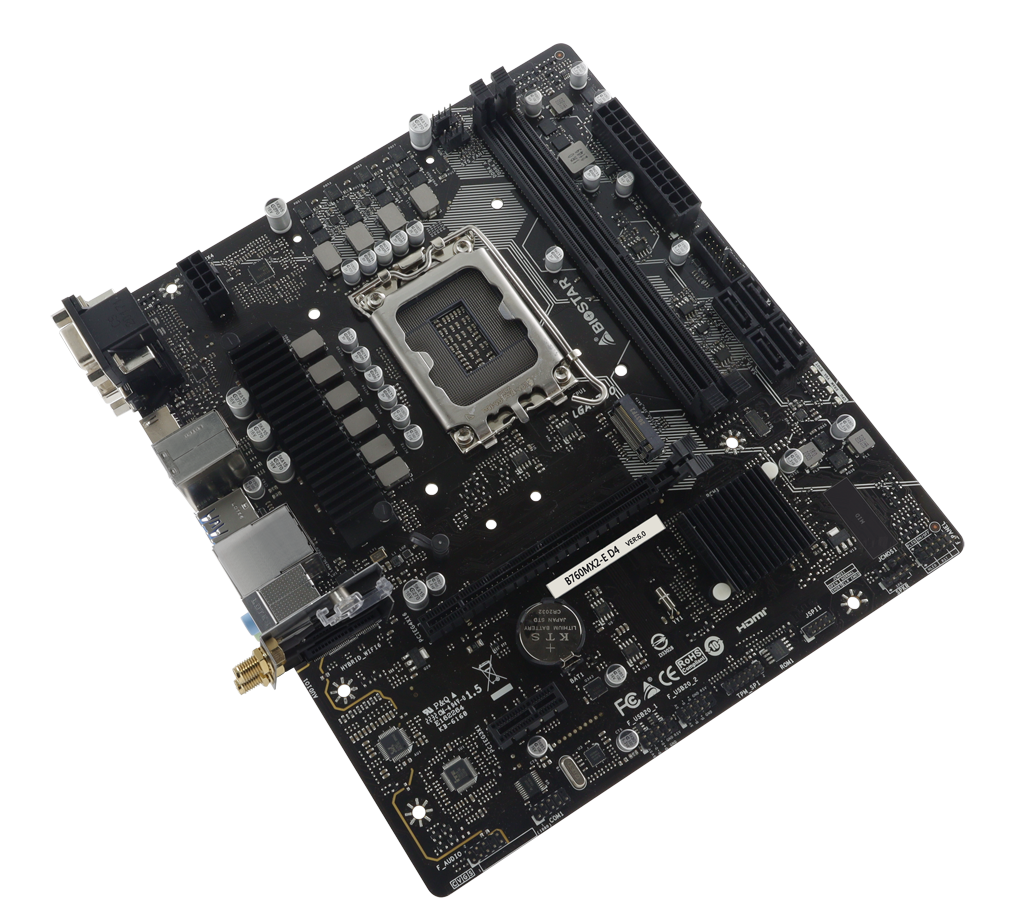

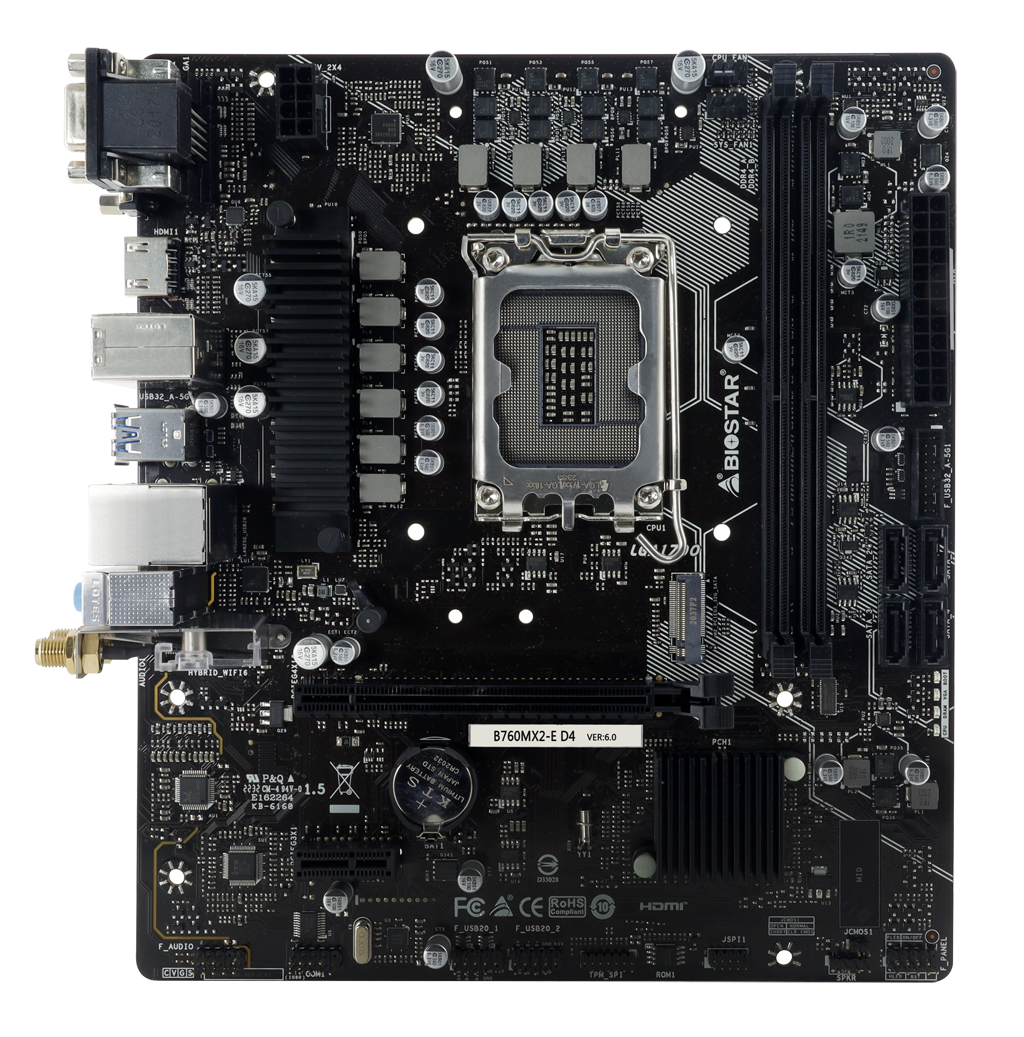

Biostar Intel B760MX2-D4 Motherboard

shoe image
shoe image
shoe image
shoe image

Biostar Intel B760MX2-D4 Motherboard | 2- DIMM DDR4 Up To 64GB | Support Intel i9/i7/i3 Processors, 2 DIMM DDR4 Up To 64 GB Memory | PCIe 4.0, USB3.2 Gen 1, 4*SATA III Connectors

  • Model: Intel B760MX2-D4

  • Brand: Biostar

  • Category: Gaming Motherboard

AED480.00
  • 1 YEAR WARRANTY
  • Delivery within 48hour
Spin UpSpin Down

Shop On:

Share At:



Product Description
  • Intel B760 Single chip: Support for 12th/13th/14th generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package.
  • Dual DDR4: You can insert up to 64 GB DDR4 in two slots; each slot supports 4/8/16/32 GB to improve the graphical enhancement of the system.
  • SATA III 6Gbps: SATA III 6Gbps is 2 times faster than SATA II. It provides a higher bandwidth to retrieve and transfer HD media.
  • HD Audio: The motherboard provides high-resolution audio with minimal loss of audio accuracy.
  • Video: With the help of the new HDMI 4k2k & DX12 provides high-definition videos with richer scenes.
  • PCIe 4.0: Widely used standard for input/output connectivity in computers. Operates at a signaling rate of 16(GT/s) per lane, effectively doubling the interconnect performance bandwidth compared to the previous version, PCIe 3.0.
  • USB 3.2 GEN1 Ports: Allow users to transfer files faster.
  • WiFi 6 & 6 E Module (No WiFi card included): Enable integration with compatible WiFi 6/6E modules for high-speed, low-latency wireless connectivity, offering advanced performance and broader bandwidth for modern networking needs.
  • Supports 2.5G (LAN): Enable 2.5 Gigabit LAN (Local Area Network) connectivity, providing faster data transfer speeds via Ethernet. This feature offers enhanced networking performance for quicker file transfers, smoother multimedia streaming, and reduced latency in compatible systems.

Specifications



CPU Support

Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and

Intel Pentium processors/ Intel Celeron processors in the LGA1700 package

Memory

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/

3800(OC)/ 4000(OC)/ 4400+(OC)

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Integrated Video

Supports DX12

Supports HDCP

Storage

Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports

Intel B760 Chipset

1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):

Supports M.2 Type 2242 /2260 /2280 SSD module

Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA SSD

4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid

Storage Technology

LAN

TL8125B

10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

Audio CODEC

ALC897

7.1 Channels, High Definition Audio

USB

4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers)

8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)

Expansion Slot

INTEL 12th/13th/14th Processors

1 x PCIe 4.0 x16 Slot (x16 mode)

INTEL B760 Chipset

1 x PCIe 3.0 x1 Slot

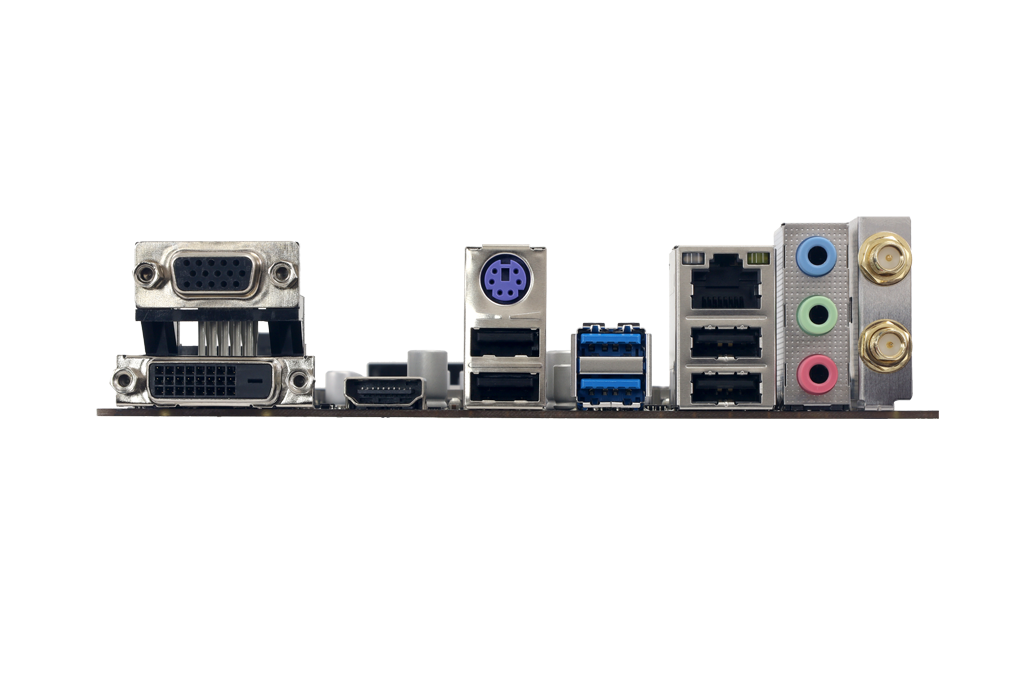

REAR I/O

1 x WIFI Antenna Port

1 x PS/2 Keyboard/ Mouse Port

1 x HDMI

1 x VGA+DVI Port

2 x USB 3.2 (Gen1) port

4 x USB 2.0 port

1 x LAN port

3 x Audio Jack

Internal I/O

4 x SATA III Connector (6Gb/s)

1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel

CNVi

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

* M.2 (E key) Wi-Fi card is not provided

H/W Monitoring

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

DIMENSION Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )

OS Support

Supports Windows 10 (64 bit) / 11(64 bit)

Bundle Software

BullGuard

Accessories

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide

1 x Others
