BRAND : BIOSTAR

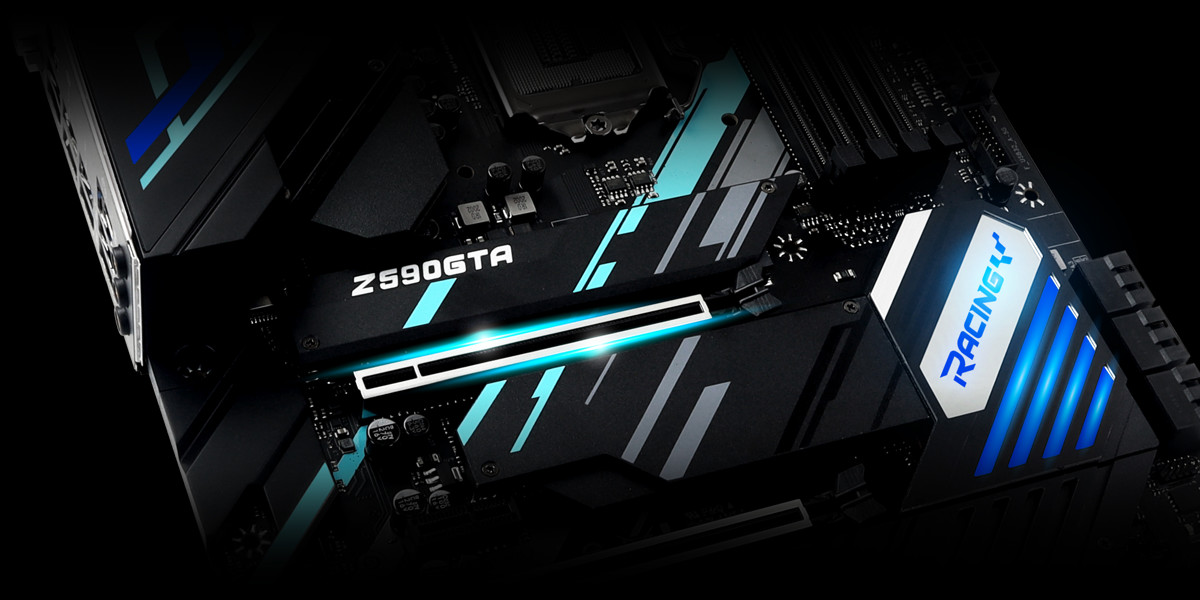

Model : Z590 GTA
CPU SUPPORT:
1) Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package.
2) Supports Intel Turbo Boost Max 3.0 Technology.
MEMORY:
1) Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133.
2) 4 x DDR4 DIMM Memory Slots, Max. Supports up to 128 GB Memory.
3) Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module.
4) Support Intel Extreme Memory Profile (XMP) memory modules.
SOCKET : 1200
CHIPSET : INTEL Z590 ( SINGLE CHIP ARCHIETECTURE)
INTEGRATED VIDEO SUPPORT:
By CPU model : Supports DX12 & Supports HDCP
LAN SUPPORT :
1) Realtek RTL8125B
2) 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability.
AUDIO CODEC:
1) ALC1220 - 7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)
EXPANSION SLOT :
2 x PCIe 3.0 x 1 Slots
1 x PCIe 4.0 x 16 Slot (x16 mode)
1 x PCIe 3.0 x 16 Slot (x4 mode)
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for INTEL 11th Gen CPUs.
STORAGE :
Total supports 3 x M.2 socket and 6 x SATA III (6Gb/s) ports
6 x SATA III Connectors (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) - NVMe/ AHCI SSD
Support 11th Gen processor only
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):
Supports M.2 Type 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_RST_2):
Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology
* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.
* When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled.
USB SUPPORT :
1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O)
2 x USB 3.2 (Gen2) ports (2 on rear I/Os)
5 x USB 3.2 (Gen1) ports (3 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports(2 on rear I/Os and 4 via internal header)
INTERNAL I/O CONNECTORS:
6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connectors
2 x MOSFET Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt 3 Header
2 x LED Header (5V)
1 x LED Header (12V)
1 x IO LED Header
1 x SB LED Header
* M.2 (E key) Wi-Fi card is not provided
BACK PANEL CONNECTORS:
2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port (HDMI2.0)
1 x DP Port
1 x DVI-D Port
1 x USB 3.2 (Gen2x2) Type-C Port
2 x USB 3.2 (Gen2) Ports
3 x USB 3.2 (Gen1) ports
2 x USB 2.0 ports
1 x 2.5 GbE LAN port
3 x Audio Jack
LAN SUPPORT :
Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability.
FORM FACTOR:
ATX Form Factor Dimension: 30.5 cm x 24.4cm ( W x L )
H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
SPECIAL FEATURES:
VIVID LED DJ
M.2 Cooling Protection
Tweak Tech
BIOS-Flasher
A.I FAN
LED ROCK ZONE
RGB Memory Sync
BIOSTAR Flash
BIOS EZ Mode /Advanced Mode
Intel Optane technology
SOFTWARE FEATURES:
Racing GT Utility , BullGuard
OS SUPPORT:
Supports Windows 10(64bit)
