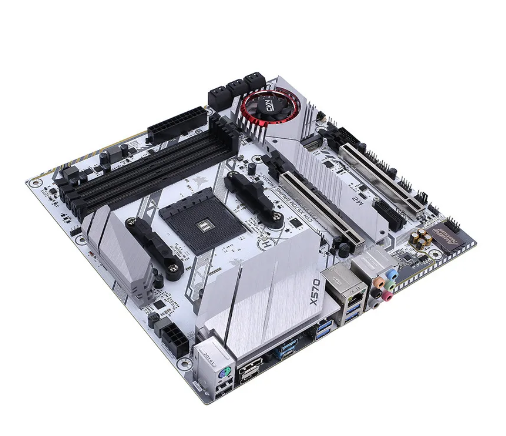

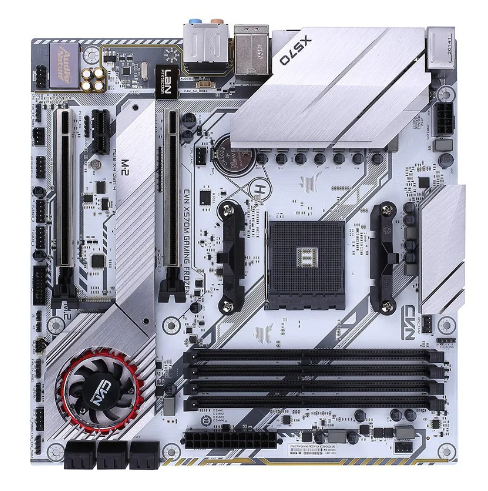

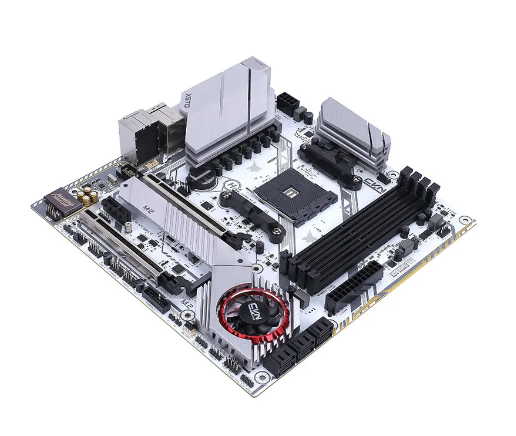

Colorful CVN X570M Gaming Pro V14 Gaming Motherboard

shoe image
shoe image
shoe image
shoe image

Colorful AMD AM4 CVN X570M Gaming Pro V14 Motherboard | Supports Dual DDR4 | PCIe 4.0, USB 3.1, 5V LED Header

  • Model: CVN X570M Gaming Pro V14

  • Brand: Colorful

  • Category: Gaming Motherboard

AED450.00
  • 1 YEAR WARRANTY
  • Delivery within 48hour
Spin UpSpin Down

Shop On:

Share At:



Product Description
  • ALC1150 HD Audio: The motherboard provides high-resolution audio with minimal loss of audio accuracy.
  • AMD AM4: Supports Ryzen 2000 and 3000 series for efficient PC performance.
  • Dual DDR4: You can insert up to 32 GB DDR4 in two slots; each slot supports 8/16 GB to improve the graphical support of the system.
  • PCIe M.2: It is 5 times faster than SATA III 6Gbps. Provides the highest bandwidth & lower latency.
  • PCIe 4.0: Widely used standard for input/output connectivity in computers. Operates at a signaling rate of 16(GT/s) per lane, effectively doubling the interconnect performance bandwidth compared to the previous version, PCIe 3.0.
  • USB 3.1 GEN1: Allow users to transfer files faster.
  • LED Headers: For personalization and integration provided 5V RGB LED headers.

Specifications

Processor Support & Chipset

Processor Support & Chipset

CPU Support

AMD Ryzen 2000/3000

TDP

125W

Chipset

AMD X570

BIOS

256M UEFI

Supports English Storage and RAM

SATA 3.0 *6, DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ

Memory Slots

Dual Channel

Memory Support Max

64 GB

Input Output and Extension Support

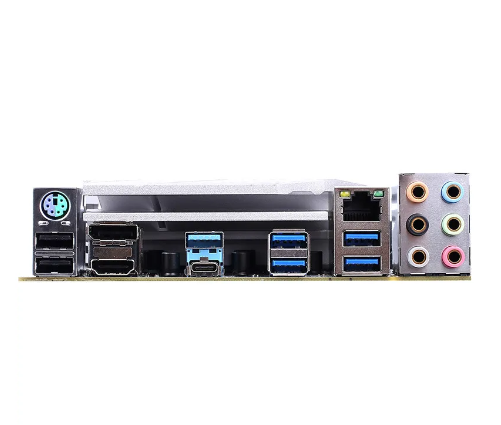

4*USB 2.0(2 Ports + 2 Sockets) 4* USB 3.1 Gen 1 Type A (3 ports + 1 socket) 1* USB 3.1 Gen 1 Type C 2* USB 3.1 Gen 2 Type A

LAN Chipset

RTL8111H

Max LAN Speed

1000 Mb/s

Audio Chipset

Realtek ALC892 8 Channel

Power Supply

24 pin +8pin. Motherboard x1 Manual x1 I/O Shield x1 SATA Cable x2 Driver dvd x1Supports PS/2. PCIE 4.0 X 16 * 1; PCI -E 4.0 X 4*1 PCI -E 4.0 X 1*1. M.2 SSD Socket *2 (Support PCIE X 4 and SATA SSD. COM * 1.
