BRAND : BIOSTAR
Model : B560 GTQ
CPU SUPPORT :
1) Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
2) Supports Intel Turbo Boost Max 3.0 Technology.
MEMORY:
1) Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133.
2) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory.
3) Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module.
4) Support Intel Extreme Memory Profile (XMP) memory modules.
INTEGRATED VIDEO SUPPORT:
By CPU model : Supports DX12 & Supports HDCP
STORAGE:
1) 6 x SATA III Connectors (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
2) 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
3) Supports M.2 Type 2280 SSD module
4) Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD
5) Support 11th Gen processor only
6) 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):
7) Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
8) Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
9) Supports Intel Rapid Storage Technology and Intel Optane Technology
* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.
* When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled.
LAN SUPPORT :
1) Realtek RTL8125B
2) 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability.
AUDIO CODEC:
1) ALC1220 - 7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)
USB SUPPORT:
1) 2 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O and 1 via internal header)
2) 5 x USB 3.2 (Gen2) port (5 on rear I/Os)
3) 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal header)
4) 4 x USB 2.0 port (4 via internal header)
EXPANSION SLOT:
1 x PCIe 3.0 x 1 Slot
1 x PCIe 4.0 x 16 Slot (x16 mode)
1 x PCIe 3.0 x 16 Slot (x4 mode)
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for INTEL 11th Gen CPUs.

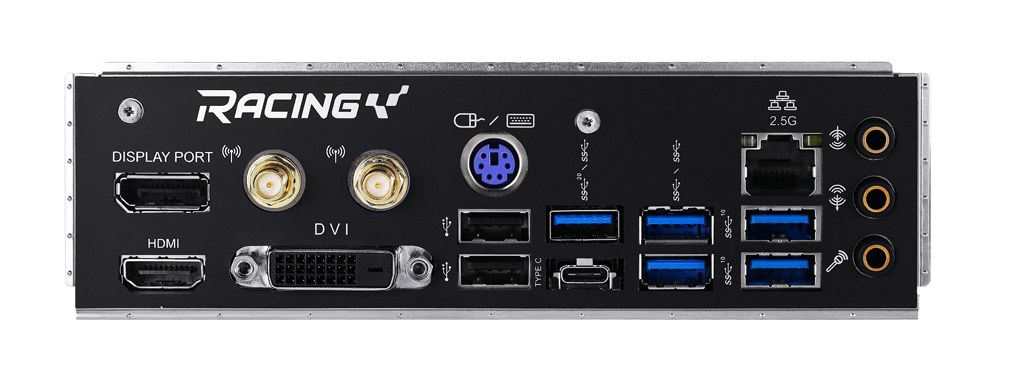

REAR I/O:
2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port (HDMI2.0)
1 x DP Port
1 x DVI-D Port
1 x USB 3.2 (Gen2x2) Type-C Port
2 x USB 3.2 (Gen2) Ports
3 x USB 3.2 (Gen1) ports
2 x USB 2.0 ports
1 x 2.5 GbE LAN port
3 x Audio Jack
INTERNAL I/O :
6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port)
2 x 8-Pin Power Connectors
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connectors
2 x MOSFET Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Switch Button
1 x Power Switch Button
1 x Reset Switch Button
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt 3 Header
2 x LED Header (5V)
1 x LED Header (12V)
1 x IO LED Header
1 x SB LED Header
H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION :
ATX Form Factor Dimension: 24.4 cm x 24.4 cm ( W x L )
OS SUPPORT:
Supports Windows 10(64bit)
ACCESSORIES:
4 x SATA Cable
1 x DVD Driver
1 x User Manual
FEATURES:
VIVID LED DJ
M.2 Cooling Protection
Touch Button
Dual BIOS
Tweak Tech
Rapid Debug3
BIOS-Flasher
A.I FAN
LED ROCK ZONE
RGB Memory Sync
BIOSTAR Flash
BIOS EZ Mode /Advanced Mode
Intel Optane technology
